TOP CONNECTION: 13-5/8" 10,000PSI WP BX-159 FLANGE; BOTTOM CONNECTION: 13-5/8" 5,000PSI WP BX-160 FLANGE ; OUTLET’S CONNECTION: TWO (2) IS 3-1/8" 5,000PSI FLANGE ; TEMPERATURE CLASS: T-20/250, DRILLING ADAPTER

Drilling Rig spare parts API 6A 10000 PSI Spacer spools or Riser flange

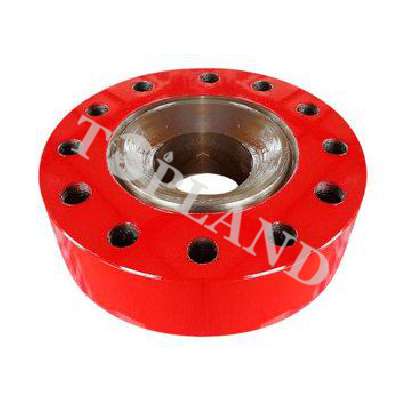

Description of Spacer Spool

Spacer Spools in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill and

Production Manifold applications. Spacer Spools usually have the same nominal end connections. Spacer Spool

identification consists of naming each end connection and the overall length. NOV SARA Spacer Spools usually do not

have outlets, but customers may specify outlets.

We supply the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).

Featurers of Drilling Adapters Flange Spacer Spool

• Body: in-line or angle.
• End connections: flanged, threaded or weld end.
• Connections: 1”, 2”,3” from ANSI 150# up to API 5000.
• Trim in stainless steel, hard facing or tungsten carbide.
• Profiled trim to provide linear characteristics.
• Adjusting handle to provide continuous control.
• Indicator barrel shows valve setting in 1/64”.
• Valves can be automated with electric or pneumatic actuators.
• Custom engineered microspline trims provide control below Cv+0.01 and maybe interchanged in standard bodies.

Product range
