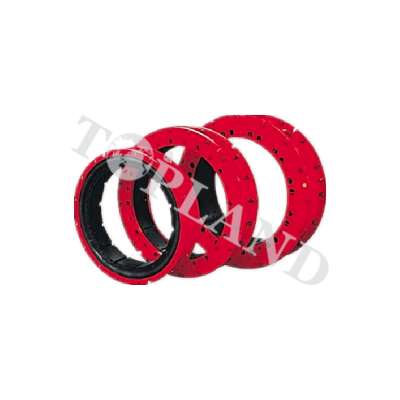

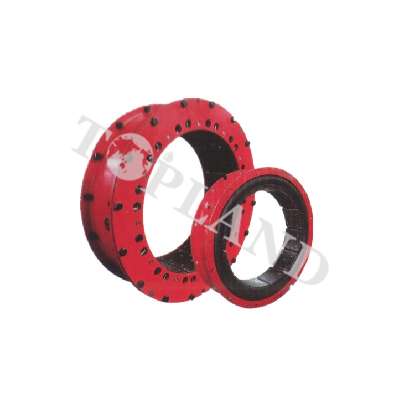

LT500250T

VENTILATED TYPE AIR TUBE CLUTCH REFERENCE JC110.00 JC40D DRAWWORKS ELEVATION DRAWING JC110.05.00 AUXILIARY DRIVE SHAFT ASSEMBLY

US$ *319.44EA

Model/PN: LT500250T

Brand: KAIXIANG

Standard: API

Lead Time: 10 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8431499900

Purchase Quantity

Add to Wishlist



Product Details

Air tube clutches are one of the most important transmission parts for drilling rigs and workover rigs, which are used to transmit torque and separate transmission system during operation. Air tube clutch has the character of clutch quick, smooth operation, clearance evenly, reliable and security.

Its main functions are:

1. Transmit torque in power transmission system.

2. Acts as a clutch and transmit torque in the pump set.

3. Can be used for pneumatic brake when emergency.

Air tube clutch can be divided into common type and ventilation type.

Common type: LT300/100T, LT400/125T, LT500/125T LT600/125T, LT700/135T, LT700/200T, LT800/135T

Ventilation type: LT500/200T, LT500/250T, LT600/250T, LT700/250T, LT800/250T, LT900/250T, LT1070/250T, LT1170/250T, LT965/305T, LT1168/305T, LT1120/300T,LT1250/300T

Size



Outer diameter

/mm

Inner diameter/mmBreadth of section/mm

Friction wheel width

/mm

Nozzle numberNozzle internal thread/mm
LT290*10029022493781M12*1.5
LT290*1482902241481331M20*1.5
LT300*100392315115981M20*1.5
LT300*1503923131501331M20*1.5
LT400*1255174201661251 or 2M20*1.5
LT500*1256455211521231 or 2M20*1.5
LT600*1257506221531231M20*1.5
LT700*2008007232431982M33*1.5
LT700*1358147221641372M20*1.5
LT800*1359158221651372M20*1.5
LT1070*200127010932431982M33*1.5
LT1000*25010408802902461M33*1.5
