ZJ40D

Refurbished Complete ZJ40D Drilling Rig With 1300HP Mud Pumps For Oilfield Drilling



Model/PN: ZJ40D

Standard: API

Warranty: 12 Months

Place of Origin: China

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8430.49

Weight: Estimated 180,000 kg Kg

Size: Approx. 43,000 × 8,000 × 12,000 mm;

Material: Structural Steel, Alloy Steel,

Rig Type: Land Drilling Rig

Mud Pump Configuration: 2 × 1300 HP Lanshi Mud Pumps

Application: Onshore Oil And Gas Drilling



Product Details

ZJ40D 1000HP Land Drilling Rig

**Product Overview**

The ZJ40D Land Drilling Rig is a land-based drilling equipment package intended for onshore oil and gas drilling operations. The supplied equipment list includes the hoisting system, rotary drilling equipment, mud circulation equipment, power units, electrical facilities, and auxiliary equipment.

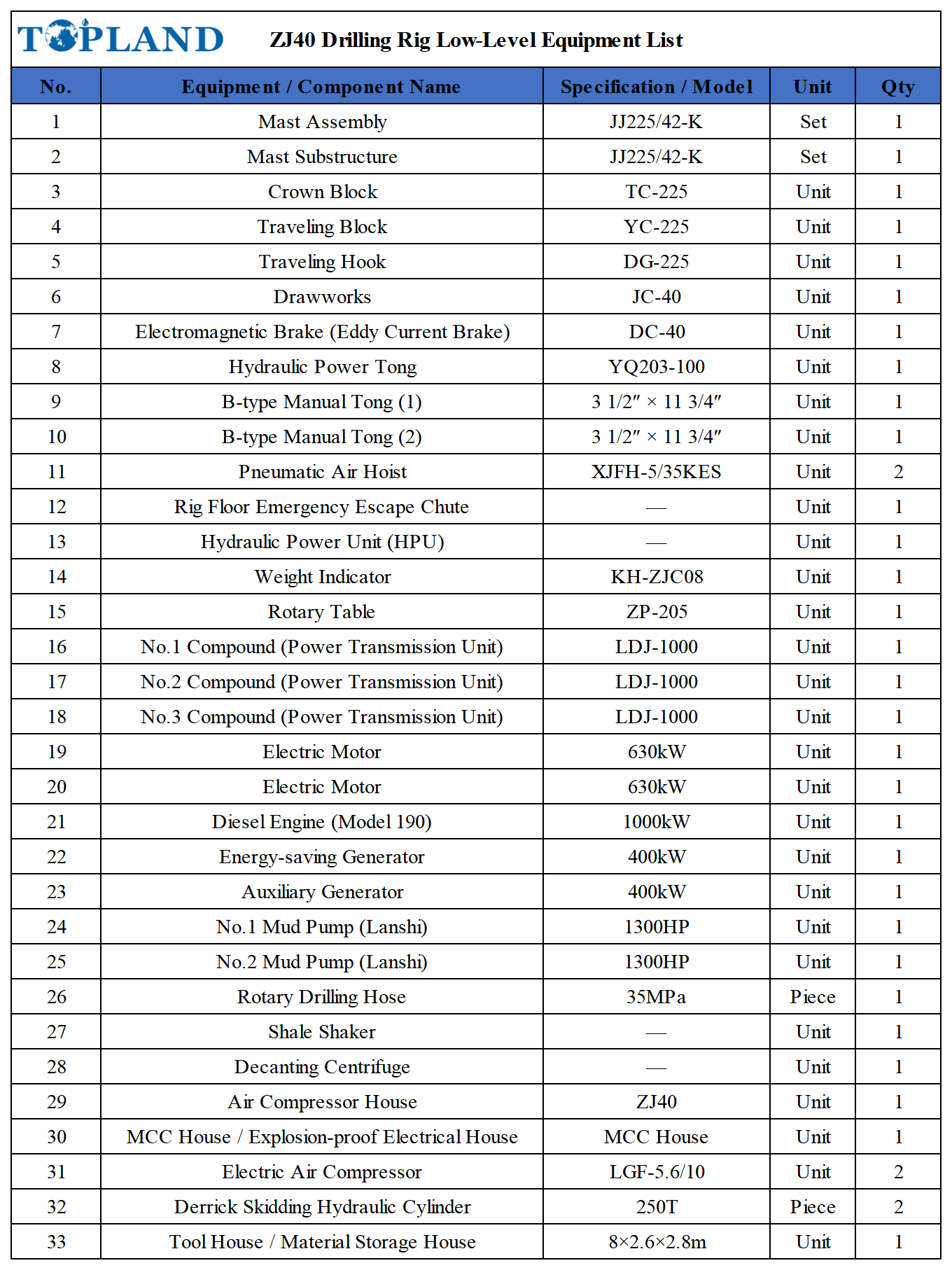

The package configuration is based on the supplied ZJ40 drilling rig equipment list. The final equipment scope and technical parameters should be verified against the original equipment documentation before purchase.

**Main Equipment Configuration**

**1. Hoisting System**

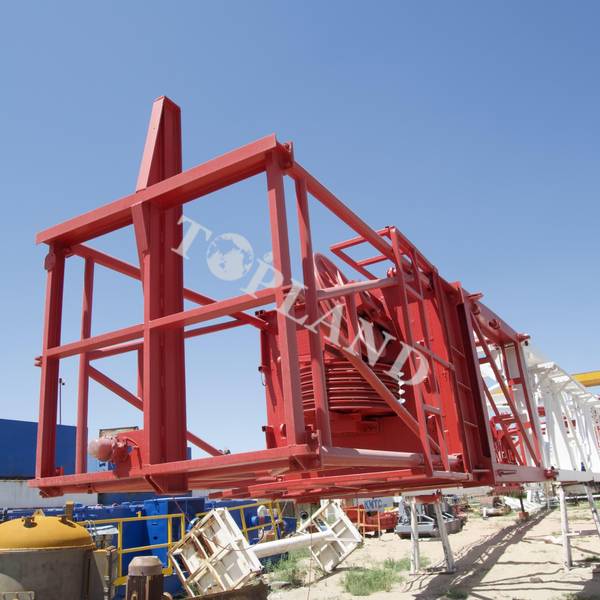

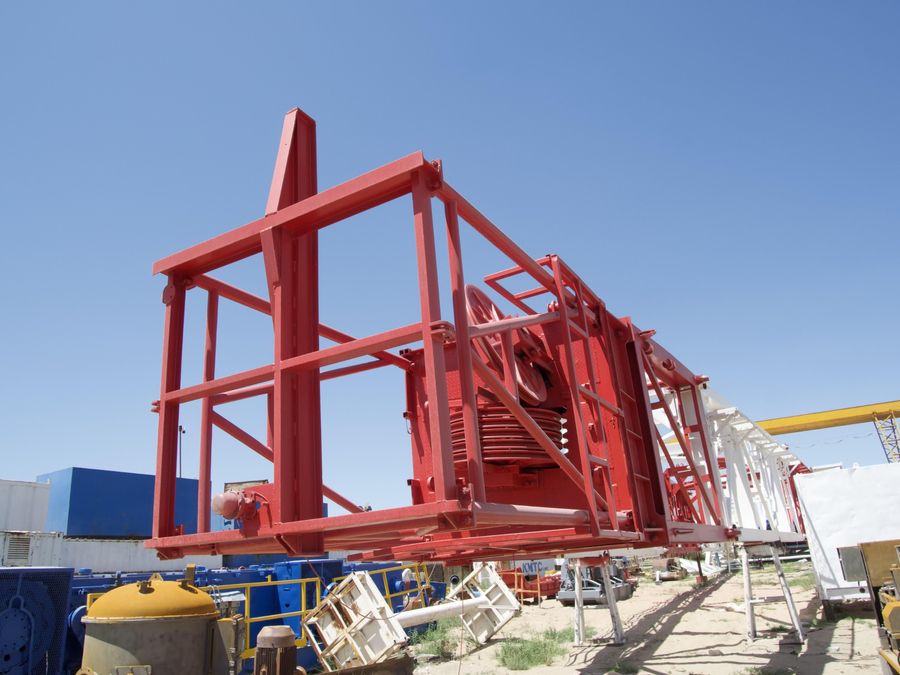

- Mast Assembly: JJ225/42-K

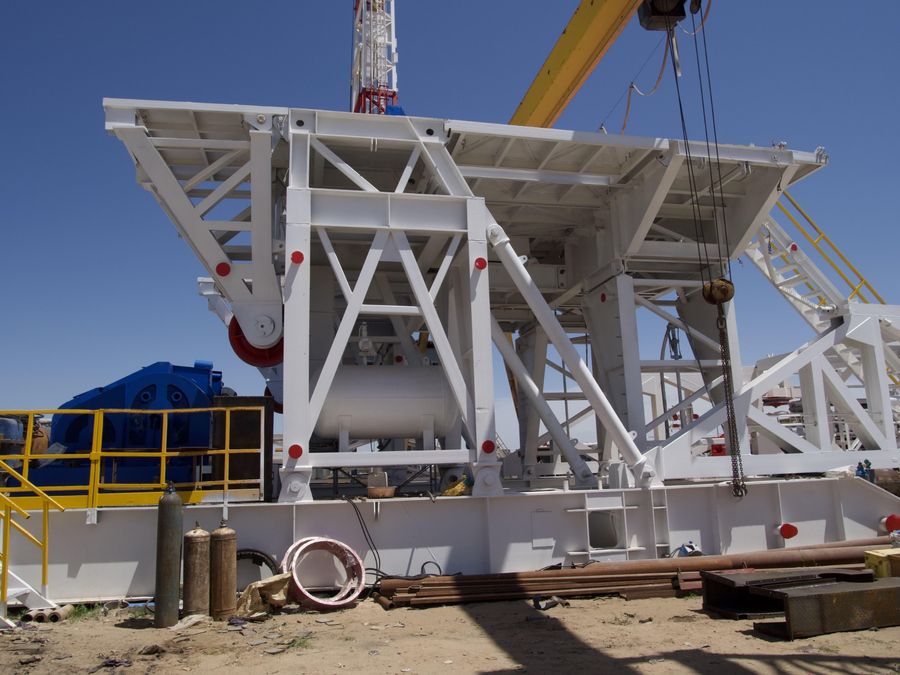

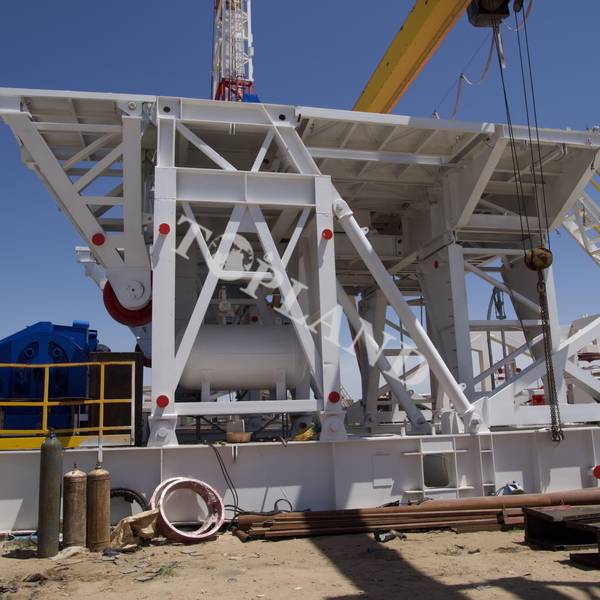

- Mast Substructure: JJ225/42-K
- Crown Block: TC-225
- Traveling Block: YC-225
- Traveling Hook: DG-225
- Drawworks: JC-40

**2. Drilling and Pipe-Handling Equipment**
- Hydraulic Power Tong: YQ203-100
- B-Type Manual Tongs: 2 Units
- Rotary Table: ZP-205
- Rotary Drilling Hose: 35 MPa

**3. Mud Circulation System**
- Lanshi Mud Pumps: 2 × 1300 HP
- Shale Shaker: 1 Unit
- Decanting Centrifuge: 1 Unit

**4. Power and Electrical Systems**
- Electric Motors: 2 × 630 kW
- Model 190 Diesel Engine: 1000 kW
- Energy-Saving Generator: 400 kW
- Auxiliary Generator: 400 kW
- MCC House / Explosion-Proof Electrical House
- Electric Air Compressors: 2 Units

**5. Auxiliary Equipment and Facilities**
- DC-40 Eddy Current Brake
- Hydraulic Power Unit (HPU)
- KH-ZJC08 Weight Indicator
- Pneumatic Air Hoists: 2 Units
- Derrick Skidding Hydraulic Cylinders: 2 Units
- Rig-Floor Emergency Escape Chute
- Air Compressor House
- Tool / Material Storage House

**Key Features**

- Integrated land drilling rig package with major hoisting, rotary, mud circulation, and auxiliary systems.
- Equipment models and quantities listed for configuration review and procurement planning.
- Includes two 1300 HP mud pumps and multiple power-generation and drive components.
- Suitable for onshore drilling projects, subject to verification of the actual rig configuration and operating specifications.

**Technical Information Notice**

The equipment models and quantities above are based on the supplied equipment list. Published ZJ40D series specifications can vary by manufacturer and configuration. Drilling depth, hook load, overall dimensions, total weight, applicable standards, and the complete power-drive arrangement must be verified against the actual rig documentation.



Contact Topland Oilfield Supplies for details on the available ZJ40D drilling rig package and its equipment scope.
